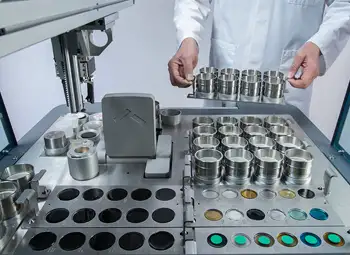

PANalytical XRF: Axios Zetium Laboratory Systems

Posted on: 16.02.2026

Understanding PANalytical Laboratory XRF Technology

PANalytical represents industry leader in X-ray analytical solutions, providing wavelength dispersive and energy dispersive XRF systems trusted by thousands of laboratories worldwide. The laboratory systems employ sophisticated X-ray optics, advanced detection technology, and comprehensive sample handling automation delivering analytical performance supporting certification-quality results, regulatory compliance, and research publications requiring defensible data quality.

Laboratory XRF differs fundamentally from portable handheld analyzers through multiple critical dimensions. Stationary installation enables powerful excitation sources delivering superior sensitivity. Optimized measurement geometry minimizes variables improving precision and accuracy. Automated sample handling processes hundreds of samples with consistent conditions. Advanced detection systems achieve energy resolution enabling trace element detection impossible with handheld technology. Comprehensive software provides method development, quality control, and data management supporting quality system compliance.

The technology employs either energy dispersive (EDXRF) or wavelength dispersive (WDXRF) configurations. Energy dispersive systems measure fluorescent X-ray energies directly through solid-state detectors enabling simultaneous multi-element analysis. Wavelength dispersive systems employ crystal diffraction separating X-rays by wavelength enabling superior energy resolution and detection limits. Professional laboratories often employ both technologies strategically—energy dispersive for rapid multi-element screening, wavelength dispersive for demanding applications requiring ultimate precision.

Axios Laboratory System Platform

Comprehensive Energy Dispersive Capability

The PANalytical Axios represents advanced energy dispersive XRF platform delivering comprehensive elemental analysis across diverse sample types and matrices. The flexible architecture accommodates various detector configurations—silicon PIN for cost-effective performance, silicon drift detectors for enhanced sensitivity, or specialized detectors optimized for specific element groups.

Key Axios characteristics:

  • Wide elemental range from sodium (Z=11) through uranium (Z=92)
  • Multiple detector options including silicon drift detectors achieving 125-145 eV energy resolution
  • Automated 48-position sample changer enabling unattended analysis
  • Variable X-ray tube voltage (20-60 kV) optimizing excitation for different element groups
  • Multiple primary beam filters optimizing signal-to-background ratios
  • Simultaneous multi-element analysis detecting 20-40 elements per measurement
  • Typical analysis time 2-10 minutes per sample for comprehensive quantification
  • Detection limits 1-100 parts per million depending on element and matrix

Axios Advantages

Simultaneous multi-element capability delivers complete compositional profiles from single measurements—advantageous for complex samples containing numerous constituents. The energy dispersive approach enables rapid screening identifying major components quickly before extended wavelength dispersive confirmation when needed.

Sample versatility accommodates solids, powders, liquids, and prepared specimens. The flexible chamber geometry accepts diverse sample types from small coupons to large components without modification. Automated handling processes large sample batches with consistent measurement conditions.

Proven technology with decades of deployment demonstrates reliability and performance. Extensive user base across industries provides established application database and method library supporting rapid analysis method development.

Axios Applications

Quality control laboratories utilize Axios for incoming material verification, process monitoring, and finished product certification. The automated workflow processes high volumes efficiently with consistent precision. Mining laboratories employ Axios for ore characterization, geochemical analysis, and resource evaluation. Environmental monitoring requires rapid sample throughput detecting trace contamination across large sample sets.

Zetium Advanced System Platform

Premium Wavelength Dispersive Technology

The PANalytical Zetium represents flagship wavelength dispersive XRF system delivering ultimate analytical capability through advanced crystal diffraction technology. This premium platform achieves energy resolution 5-15 eV—approximately 10x superior to energy dispersive systems—enabling precise separation of closely-spaced elemental peaks and exceptional trace element detection.

Wavelength dispersive operation employs multiple crystal analyzers and sequential element measurement optimizing conditions for each element individually. The element-specific optimization delivers superior accuracy particularly for challenging applications involving spectral overlap, light element detection, or trace level quantification.

Zetium Technical Specifications

Key Zetium capabilities:

  • Superior energy resolution 5-15 eV achieving peak separation energy dispersive cannot achieve
  • Detection limits reaching parts-per-billion for many elements
  • Automated goniometer selecting optimal crystal analyzers for each element
  • Sequential analysis optimizing measurement conditions element-by-element
  • High-power X-ray source (3-4 kW) delivering exceptional sensitivity
  • Advanced sample changer accommodating 50+ specimens for extended unattended operation
  • Exceptional accuracy ±0.05-0.1% relative for major elements
  • Precision better than 0.05% relative standard deviation for repeated measurements
  • Elemental range from beryllium (Z=4) through uranium (Z=92) including light elements



Zetium Advantages

Ultimate analytical performance distinguishes Zetium from all competing platforms. Superior energy resolution enables detection of adjacent elements like molybdenum/tungsten or lead/bismuth impossible with energy dispersive technology. Detection limits approaching parts-per-billion support trace element research, high-purity material verification, and contamination investigation.

Light element capability from beryllium through carbon addresses analytical gaps in energy dispersive systems. This extended range supports geological minerals, advanced ceramics, polymers, and specialized materials where light element composition critically impacts properties.

Uncompromising accuracy supported by fundamental physics calculations and advanced calibration methods delivers certification-quality results meeting regulatory requirements, supporting scientific publications, and satisfying demanding research standards. The comprehensive analytical rigor justifies premium investment for applications where analytical quality directly impacts critical decisions.

Zetium Applications

Research institutions employ Zetium for fundamental materials science investigations, novel material characterization, and high-impact publications requiring defensible analytical data. Aerospace industries utilize Zetium for advanced material qualification, critical component verification, and safety-critical application analysis where measurement certainty proves essential.

Pharmaceuticals rely on Zetium for trace element impurity analysis, materials of construction verification, and manufacturing process control meeting stringent regulatory standards. Environmental research organizations use Zetium for ultra-trace contamination investigation, pollution source identification, and environmental forensics requiring exceptional sensitivity.

Comparative Analysis: Axios vs Zetium

Characteristic

Axios (EDXRF)

Zetium (WDXRF)

Energy Resolution

125-145 eV

5-15 eV

Detection Limits

1-100 ppm

Sub-ppm to 1-10 ppm

Analysis Speed

2-10 min per sample

5-30 min per sample

Simultaneous Elements

20-40 simultaneous

Sequential analysis

Light Elements

Magnesium and above

Beryllium and above

Sample Types

Diverse

Solid, powder samples

Automation

48-position changer

50+ position changer

Cost

Mid-range

Premium

Typical Applications

QC, screening, diverse

Research, certification

Sample Preparation and Methodology

Solid Sample Analysis

Direct metal analysis requires clean surfaces minimizing preparation—grinding removes oxidation and contamination. Geological samples crush to fine powders pressing into pellets under 10-40 tons pressure creating homogeneous flat surfaces eliminating particle size effects. The preparation requirements increase accuracy by standardizing sample geometry and composition uniformity.

Fused Glass Bead Preparation

Ultimate precision for major element analysis employs lithium tetraborate fusion dissolving samples completely into homogeneous glass beads. The fusion process eliminates mineralogical effects and particle size variations, achieving accuracy approaching ±0.05-0.1% relative. The procedure requires specialized fusion instruments and trained operators but delivers uncompromising analytical quality.

Liquid Sample Analysis

PANalytical systems accommodate liquid samples in specialized containers preventing spills while allowing X-ray transmission. Petrochemical analysis, pharmaceutical quality control, and aqueous sample characterization proceed non-destructively preserving samples for additional testing.

Software and Data Management

Comprehensive Method Development

PANalytical software enables creation of custom analytical methods tailored to unique materials or specifications. Users optimize measurement parameters, select appropriate calibrations, define acceptance criteria, and validate performance through certified reference materials. The method flexibility supports diverse applications from routine quality control through research investigations.

Quality System Integration

Professional laboratories require quality system compliance—ISO 9001, AS9100 aerospace, ISO 13485 medical device, or industry-specific standards. PANalytical systems provide documented instrument qualification, method validation, calibration traceability, and complete audit trails supporting comprehensive quality documentation requirements.

Data Management and Reporting

Secure database systems store complete analytical records—raw spectra, processed results, measurement parameters, sample information, and operator details. Automated reporting generates certificates, analytical summaries, and trend analyses. Customizable templates incorporate company requirements, specification comparisons, and acceptance criteria. LIMS integration enables enterprise system connectivity and automated workflows.

Professional Support and Training

PANalytical provides comprehensive support infrastructure distinguishing premium equipment from basic instruments:

  • Technical support assisting method development and troubleshooting
  • Scheduled calibration services maintaining analytical accuracy
  • Software updates delivering capability enhancements
  • Training programs developing operator proficiency
  • Application specialists providing expert consultation
  • Preventive maintenance programs ensuring optimal performance
  • Extended warranty and service contract options

The manufacturer backing protects equipment investment ensuring long-term analytical capability and laboratory success.

Selection Criteria for Laboratory Systems

Budget Considerations

Axios systems typically cost $100,000-200,000 depending on configuration and options. Zetium premium wavelength dispersive systems range $300,000-500,000+ reflecting ultimate performance and capability. The investment requires thorough analysis of testing volumes, analytical requirements, and return through improved efficiency or capability.

Analytical Requirements

Routine quality control, incoming material verification, and screening applications function adequately with Axios EDXRF capability at substantially lower cost. Research, certification, light element analysis, or trace contamination investigation justify Zetium premium investment through superior sensitivity and precision.

Sample Volume and Throughput

High-volume laboratories processing hundreds of samples daily justify automation investment. Both Axios and Zetium provide automated sample changers supporting unattended operation optimizing laboratory efficiency. The throughput capacity justifies premium system investment through operational leverage.

Conclusion

PANalytical's Axios and Zetium laboratory systems represent world-leading XRF platforms delivering professional-grade analytical performance supporting quality control, research, and advanced materials characterization. Axios energy dispersive systems provide versatile, cost-effective capability for diverse applications, high-volume operations, and organizations requiring multi-element simultaneous analysis.

Zetium wavelength dispersive systems deliver ultimate analytical performance through superior energy resolution, exceptional detection limits, and light element capability supporting demanding research, certification applications, and situations where measurement certainty proves essential. The premium investment justifies through uncompromising analytical quality and defensible results.

For laboratories seeking professional XRF capability balancing performance, cost, and operational requirements, PANalytical systems deliver proven technology supporting analytical excellence, quality system compliance, and scientific success across industries where material composition analysis determines operational excellence and competitive advantage.
