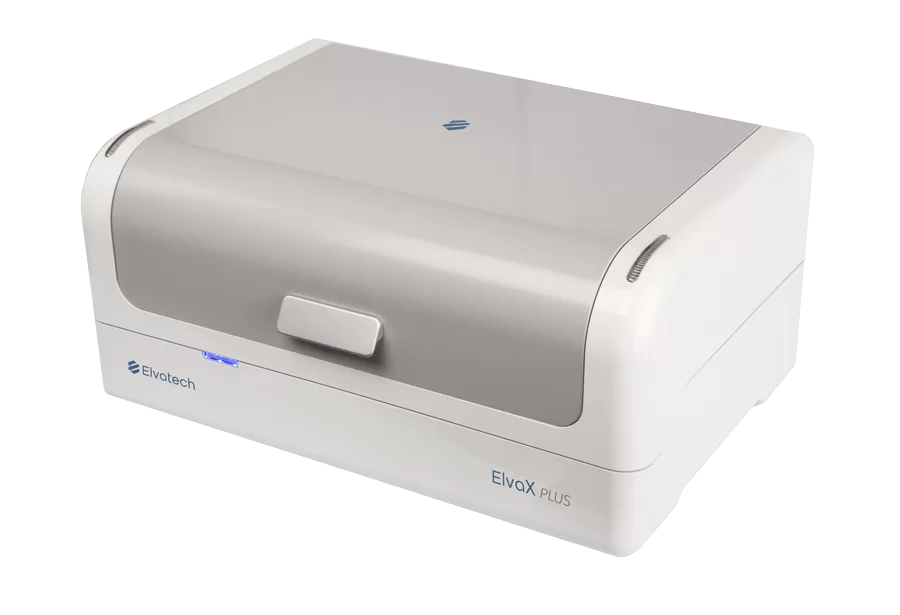

ElvaX Plus: Benchtop Light Elements Helium

Understanding the Light Element Challenge

Why Light Elements Are Difficult to Detect

Light elements (Na, Mg, Al, Si, P, S) emit low-energy X-rays that are strongly absorbed by air on the path to the detector. This causes severe signal loss or complete disappearance in standard air-mode XRF, making reliable detection very challenging with traditional benchtop analyzers.

The Helium Purge Solution

Helium purge replaces air in the measurement gap with helium gas — a light, low-absorption medium. This simple change dramatically reduces signal attenuation, significantly improving detection limits and accuracy for light elements. ElvaX Plus integrates helium purge as a core feature, enabling full Na–U analysis with high performance.

Technical Excellence of ElvaX Plus

• Large-area Silicon Drift Detector (40 mm²) — high resolution and sensitivity for faint signals
• 60 kV / 1000 µA tube — enhanced excitation for light and mid-range elements
• Throughput >400,000–500,000 cps — among the fastest benchtop XRF systems
• Automatic 8-position primary filter changer — optimized excitation for any element group
• Helium purge — multiplies light-element sensitivity

The Helium Advantage – Quantified

Real-World Applications

• Metallurgy — precise Al, Mg, Si in alloys (aluminum, magnesium, titanium)
• Petrochemicals — sulfur in fuels, Si/P in lubricants
• Food & Nutrition — Na, Mg, P, S for labeling and safety
• Polymers — phosphorus flame retardants, silica fillers
• Environment & Geology — soil, sediment, ore light-element profiling

Operational Advantages

• Compact benchtop footprint — fits standard labs
• Versatile sample types: solids, powders, liquids
• Intuitive software with automated calibrations
• Low running costs — helium only when needed, no acids or waste
• High throughput and low maintenance

Helium Purge Operation

• Automatic helium flow during light-element mode
• Low consumption via efficient chamber design
• Air mode available for heavier elements (saves helium)

Quality Assurance & Compliance

• Supports RoHS, REACH, food safety, environmental and ISO standards
• Built-in QC: auto-calibration checks, blanks, performance monitoring

Conclusion

ElvaX Plus with helium purge brings professional light-element analysis into an affordable, compact benchtop system. It offers fast, accurate Na–U results with outstanding sensitivity for light elements — ideal for metallurgy, petrochemicals, food safety, environment, and more. One instrument replaces multiple techniques, saving time, space, and costs while delivering high-quality, compliant data.
