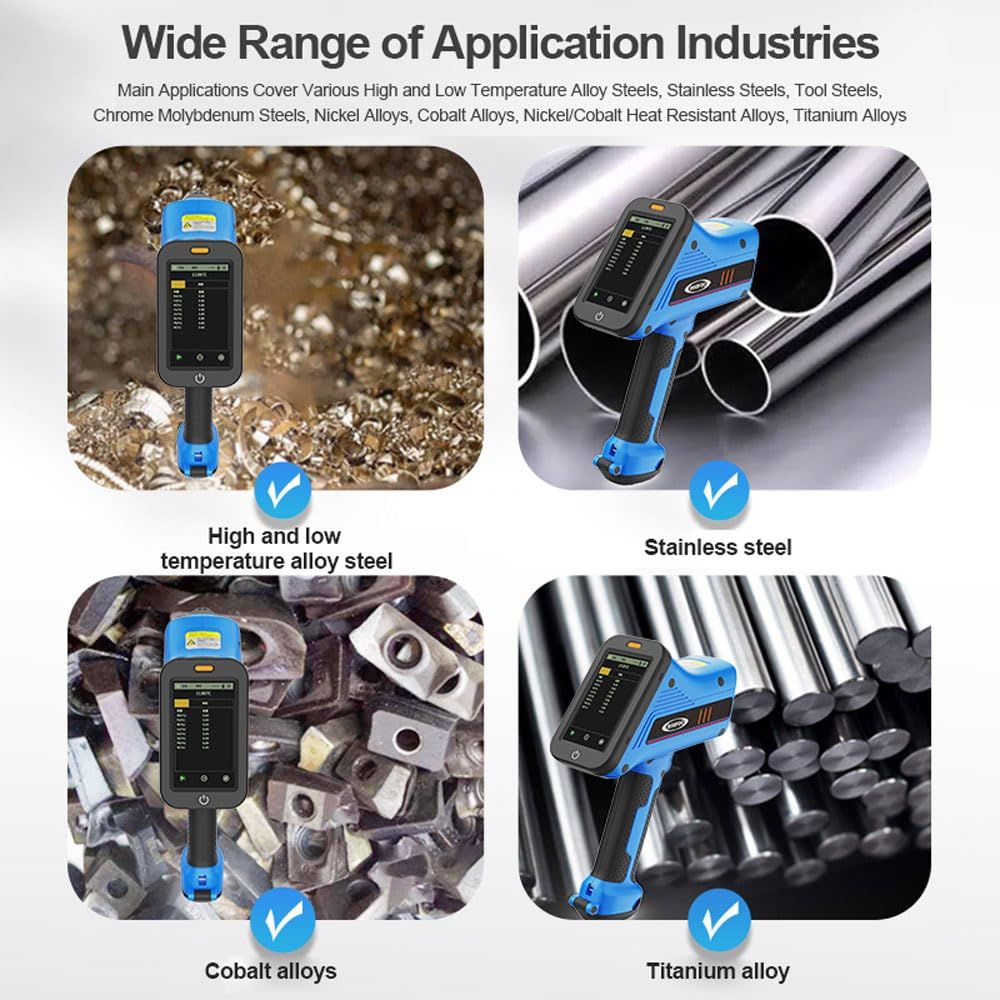

XRF Metal Analyzer: Precise Alloy Composition

Understanding Precision in Alloy Analysis

Precision describes how closely repeated measurements agree with each other, while accuracy indicates how close measurements come to true values. Both prove critical for alloy composition analysis where specifications define narrow compositional ranges—stainless 316L requires 16.0-18.0% chromium, 10.0-14.0% nickel, 2.0-3.0% molybdenum. Exceeding upper limits or falling below lower limits disqualifies materials from grade specifications regardless of proximity to targets.

XRF metal analyzers achieve remarkable precision through advanced detector technology, sophisticated signal processing, and optimized measurement conditions. Modern silicon drift detectors with energy resolution around 125-140 eV clearly separate closely-spaced elemental peaks in complex alloy spectra. High count rate capabilities exceeding 100,000-500,000 photons per second accumulate statistically reliable data rapidly. Stable X-ray sources and controlled measurement geometry ensure reproducible excitation and detection.

Typical XRF precision for major alloying elements reaches 0.05-0.1% relative standard deviation under controlled conditions—measuring 18% chromium repeatedly yields results within ±0.009-0.018% absolute. Minor elements at 1-5% achieve precision around 0.1-0.2% relative. Trace constituents at parts-per-million levels show higher relative variability but maintain absolute precision sufficient for specification verification and contamination screening.

Technology Enabling Precision

Advanced Silicon Drift Detectors

Precision begins with detector performance. Silicon drift detectors in modern XRF analyzers convert fluorescent X-rays into electrical signals with exceptional energy resolution and linearity. The 125-140 eV resolution at manganese Kα enables clear distinction between chromium (5.41 keV), manganese (5.90 keV), and iron (6.40 keV)—closely-spaced elements in stainless steels requiring precise separation for accurate quantification.

Large detector areas—25-50 square millimeters in quality analyzers—capture more fluorescent photons improving counting statistics and reducing measurement uncertainty. Higher photon counts yield more precise concentration determinations, particularly for minor elements where statistical fluctuations significantly affect calculated percentages.

Thermoelectric cooling maintains stable detector temperature crucial for consistent energy calibration. Temperature variations shift detector response affecting measured energies and calculated concentrations. Stabilized cooling ensures reproducible performance across ambient temperature changes, maintaining precision during extended measurement sessions or varying environmental conditions.

Optimized Excitation Systems

Precise composition determination requires optimized X-ray excitation. Variable tube voltage from 10-50 kV enables element-specific optimization—lower voltages efficiently excite light elements like aluminum and silicon, higher voltages penetrate absorption edges exciting heavy elements like molybdenum and tungsten. Automatic voltage selection matches excitation to analyzed alloys maximizing fluorescence efficiency and measurement precision.

Multi-position automatic filter changers optimize primary beam filtering for different element groups. Appropriate filters reduce spectral background, minimize matrix effects, and enhance sensitivity for specific elements improving signal-to-noise ratios critical for precise quantification. The automated optimization ensures consistent measurement conditions supporting reproducible results.

Sophisticated Quantification Algorithms

Raw spectral data requires sophisticated processing converting fluorescent intensities into elemental concentrations. Fundamental parameters algorithms model X-ray interactions within samples, accounting for matrix effects where element concentrations influence fluorescence from other elements. These physics-based calculations achieve accurate quantification across diverse alloy compositions without extensive empirical calibration.

Empirical calibration methods using certified reference materials optimize accuracy for specific alloy families. Regression analyses correlate measured intensities to known concentrations in standards, creating calibration curves applied to unknown samples. Combining fundamental parameters with empirical refinement delivers ultimate precision for critical applications requiring certified accuracy.

Precision Requirements Across Applications

Aerospace Alloy Verification

Aerospace applications demand ultimate compositional precision where material failures cause catastrophic consequences. Titanium alloy Ti-6Al-4V specifications define narrow ranges: 5.5-6.75% aluminum, 3.5-4.5% vanadium, with trace iron, oxygen, and other elements tightly controlled. XRF analyzers achieving 0.1% precision enable confident verification distinguishing compliant materials from marginal or out-of-specification compositions.

Aluminum aerospace alloys require even tighter control—7075-T6 specifies 1.2-2.0% copper, 2.1-2.9% magnesium, 5.1-6.1% zinc with precise chromium, manganese, silicon limits. The narrow specifications demand analytical precision matching specification tolerances ensuring verified materials perform reliably under extreme aerospace service conditions.

Pharmaceutical Stainless Steel

Pharmaceutical equipment manufacturing requires verified stainless steel compositions meeting stringent purity standards. 316L stainless specifications for pharmaceutical service define tight compositional ranges with low carbon maximums preventing carbide precipitation. XRF precision enables verification that chromium, nickel, molybdenum, and trace elements meet pharmaceutical grade requirements ensuring corrosion resistance and contamination prevention.

The precision proves particularly critical for maximum limits on restricted elements. Sulfur, phosphorus, and other trace constituents require controlled levels maintaining material properties and preventing contamination risks. XRF detection limits and precision enable verification meeting pharmaceutical industry quality standards.

Petrochemical Infrastructure

Petrochemical construction employs exotic alloys—high-nickel stainless steels, nickel-based superalloys, duplex compositions—where precise compositional control ensures corrosion resistance under severe service conditions. Specifications define narrow ranges for critical elements; materials outside limits risk premature failure causing safety incidents, environmental releases, and operational shutdowns.

XRF precision supports comprehensive PMI programs verifying thousands of components during construction. The accurate compositional analysis distinguishes compliant materials from marginal compositions requiring rejection or additional verification, protecting project integrity and long-term operational reliability.

Nuclear Applications

Nuclear industries impose ultimate precision requirements where material performance directly impacts safety. Low-cobalt alloys minimize radiation fields from neutron activation—specifications define cobalt maximums often below 0.10% requiring precise detection and quantification. XRF analyzers achieving parts-per-million sensitivity with reliable quantification support nuclear materials verification meeting regulatory requirements.

Factors Affecting Measurement Precision

Sample Preparation

Surface condition dramatically affects XRF precision. Clean, flat surfaces provide reproducible measurement geometry and X-ray interaction volumes. Contamination, heavy oxidation, or rough surfaces introduce variability compromising precision. Grinding or machining measurement spots to clean metal, removing coatings and corrosion products, ensures consistent analysis conditions supporting maximum precision.

Sample positioning matters critically for handheld analyzers where user technique affects measurement geometry. Maintaining perpendicular orientation, ensuring good analyzer-sample contact, and stabilizing against movement reduces geometric variability. Benchtop systems with fixed sample stages eliminate positioning variables, delivering superior precision through controlled, reproducible measurement conditions.

Measurement Time and Statistics

Measurement duration directly impacts precision through counting statistics. Longer measurements accumulate more photon counts reducing statistical uncertainty in calculated concentrations. Quick 2-5 second scans provide adequate precision for alloy identification. Comprehensive 30-60 second measurements deliver improved precision for certification applications. Extended 2-5 minute measurements achieve ultimate precision for research or regulatory requirements.

The relationship follows square root statistics—quadrupling measurement time doubles precision. Applications must balance precision requirements against throughput needs. Quality XRF systems offer flexible measurement modes enabling users to select durations matching specific accuracy requirements and operational constraints.

Calibration Quality

Precise measurements require proper calibration using certified reference materials matching analyzed alloy types. Calibration standards must span compositional ranges of unknown samples with certified values traceable to national standards. Regular calibration verification using secondary standards detects drift maintaining long-term precision and accuracy.

Site-specific calibrations using materials from operations optimize precision for local alloy compositions. Developing custom calibrations with representative reference materials addresses unique compositional characteristics improving analytical performance over generic factory calibrations.

Precision Specifications

Quality XRF metal analyzers specify precision quantitatively enabling objective performance evaluation. Typical specifications quote precision as standard deviation or relative standard deviation from repeated measurements of homogeneous standards. Representative values include:

• Major elements (>10%): 0.05-0.1% RSD, absolute precision ±0.005-0.020%
• Minor elements (1-10%): 0.1-0.3% RSD, absolute precision ±0.001-0.030%
• Trace elements (<1%): 0.3-1.0% RSD, absolute precision ±0.003-0.010%

These specifications apply under optimal conditions—clean samples, proper positioning, adequate measurement times, appropriate calibration. Real-world precision degrades somewhat from ideal specifications but modern XRF technology delivers remarkably reproducible results supporting stringent quality control requirements across demanding applications.

Achieving Maximum Precision

Organizations requiring ultimate XRF precision implement comprehensive measurement protocols. Standard operating procedures define sample preparation requirements, measurement parameters, and acceptance criteria. Operator training ensures consistent technique across personnel and shifts. Regular performance verification using control standards detects drift or problems maintaining reliable precision long-term.

Benchtop systems deliver superior precision through controlled environments, fixed geometry, and automated sample handling eliminating operator variables. High-throughput applications justify benchtop investment where precision requirements exceed handheld capabilities. Many operations deploy both platforms strategically—handhelds for field screening, benchtops for laboratory confirmation achieving both operational convenience and analytical precision.

Environmental control matters for ultimate precision. Stable laboratory temperature, humidity, and barometric pressure reduce variables affecting measurements. Benchtop analyzers often incorporate environmental compensation automatically correcting for ambient condition variations maintaining precision across changing environments.

Conclusion

XRF metal analyzers deliver precise alloy composition analysis meeting stringent requirements across aerospace, pharmaceutical, petrochemical, and critical manufacturing applications where compositional accuracy directly impacts material performance, safety, and regulatory compliance. The combination of advanced detector technology achieving exceptional energy resolution, sophisticated quantification algorithms modeling complex X-ray interactions, and optimized measurement conditions creates analytical capability supporting verification of tight compositional specifications.

Typical precision of 0.05-0.3% relative standard deviation for major and minor alloying elements enables confident distinction between compliant materials and marginal or out-of-specification compositions. This performance supports quality control programs preventing costly material errors, ensures regulatory compliance in demanding applications, and provides documented verification meeting customer requirements and industry standards.

For organizations requiring precise alloy composition analysis—whether handheld field verification or benchtop laboratory certification—modern XRF technology delivers proven analytical solutions combining rapid measurement speed, non-destructive testing, comprehensive multi-element capability, and precision meeting the most stringent metallurgical specifications. The continued technology advancement promises even better precision supporting future applications where compositional control determines competitive success and operational excellence.
