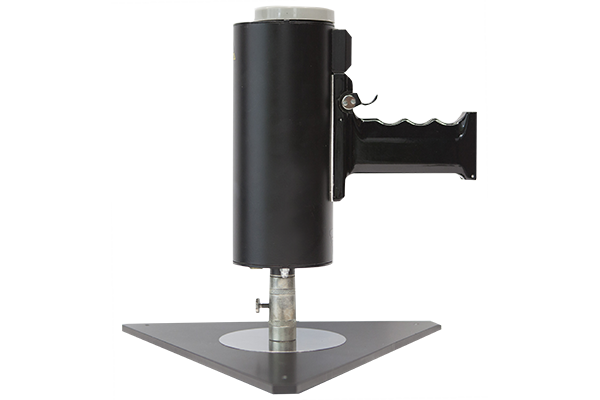

ElvaX Geo: Mining Exploration Spectrometer

What is ElvaX Geo?

ElvaX Geo is a high-precision handheld spectrometer created specifically for the mining and geological exploration industry. This portable XRF analyzer provides fast and accurate elemental analysis of a wide range of materials in solid, liquid, or powdered states. The device combines advanced X-ray fluorescence technology with user-friendly operation, making it ideal for both geo-exploration and quality assurance applications in challenging field conditions.

Key Technical Specifications

The ElvaX Geo features impressive technical capabilities that set it apart in the field of portable spectroscopy. The device weighs only 2 kg with a battery and measures 242 mm x 90 mm x 90 mm, making it highly portable for extended field use. It can detect and analyze elements ranging from Chlorine (Z=17) to Uranium (Z=92), providing comprehensive elemental coverage for most geological applications.

The spectrometer operates with a W anode X-ray tube featuring a 250 μm Be window and air cooling. Operating voltage ranges from 7-50 kV with current up to 200 μA and power output of 4 W. The device maintains exceptional stability at 0.1% over 8 hours of continuous operation. Battery life extends up to 8 hours, enabling full-day fieldwork without recharging.

Unique 800 mm² Analytical Spot

One of the most distinctive features of the ElvaX Geo is its unique 800 mm² analytical spot size. This exceptionally large measurement area allows for superior averaging of heterogeneous samples, which is crucial when analyzing natural geological materials that often contain varying compositions. The large spot size significantly improves accuracy by capturing a more representative sample of the material being analyzed, reducing errors caused by localized variations in mineral composition.

Detector Technology

The ElvaX Geo utilizes advanced detector technology to ensure precise measurements. Users can choose between PIN or SDD (Silicon Drift Detector) options depending on their specific requirements. The PIN detector offers an active area of 6 mm² with energy resolution of 165 eV at 5.9 keV (Mn Ka line). For enhanced performance, the SDD option provides a larger 25 mm² active area with improved energy resolution of 145 eV at 5.9 keV. Both detectors feature a 25 μm beryllium window.

Design for Extreme Field Conditions

The ElvaX Geo is engineered specifically for long-term continuous operation in harsh natural environments. The rugged design withstands the demanding conditions encountered during geological fieldwork, including extreme temperatures, dust, and rough handling. The spectrometer can be attached to a special long pole-handle, allowing researchers to maintain comfortable working positions during extended measurement sessions. This pole attachment also enables analysis of hard-to-reach locations such as cliff faces or deep excavations.​

The device is controlled via a PDA (Personal Digital Assistant) housed in a protective case that can be tucked under outer clothing during extreme weather conditions. This design protects the control unit from rain, snow, and temperature extremes while maintaining full operational capability. The external Li-Ion battery can similarly be concealed to prevent rapid discharge in cold temperatures.

Hands-Free Operation

The ElvaX Geo supports innovative hands-free operation that enhances productivity in the field. This form factor allows measurements to be taken "on the go," with results transmitted to the operator through headphones. This feature enables geologists to maintain continuous workflow while receiving real-time analytical data without constantly checking a display screen. The hands-free capability is particularly valuable when working on unstable terrain or when both hands are needed for safety and sample positioning.

Advanced Software and Calibration

The ElvaX Geo software employs sophisticated analytical methods to deliver accurate results. The system uses the Fundamental Parameters (FP) method combined with regression algorithms to calculate elemental concentrations. The Fundamental Parameters method enables analysis of unknown mineral types without requiring standard reference samples, providing exceptional flexibility in field applications.

Each ElvaX Geo unit is calibrated for measuring major ore types using NIST or NIST-traceable standard reference materials. This calibration ensures low detection limits and excellent repeatability of results across different measurements and conditions. The software operates on Windows CE/Mobile for the PDA interface and Windows XP/Vista/7/8/10 for desktop computer integration.

Processing and Electronics

The ElvaX Geo features advanced signal processing electronics that maximize analytical performance. The signal processor includes time-variant shaping, pile-up rejection, pulse shape discrimination, and automatic adaptation to count rate. The analog-to-digital converter provides 4096 channels for high-resolution spectrum collection. The PDA control unit operates with a 624 MHz processor and features a 4-inch screen for clear data visualization in field conditions.

Applications in Mining and Exploration

Continuous field elemental analysis represents one of the most critical tasks in modern mining operations. The ElvaX Geo addresses this need by providing accurate measurement results combined with ease of use for geological exploration and monitoring applications. Mining professionals use the device for ore grade control, mineral identification, exploration mapping, and quality assurance throughout the extraction process.

The portable analyzer enables rapid decision-making during exploration campaigns, helping companies identify high-value deposits and optimize drilling programs. By delivering immediate analytical results, the ElvaX Geo reduces the time and cost associated with traditional laboratory analysis while maintaining comparable accuracy.

Benefits of Portable XRF Technology

Portable XRF spectrometry offers numerous advantages over traditional laboratory-based analysis methods. The ElvaX Geo delivers results in real-time, enabling immediate decision-making without waiting days or weeks for laboratory reports. This speed dramatically accelerates exploration programs and production monitoring. The non-destructive nature of XRF analysis preserves samples for additional testing if needed, while the portable format eliminates transportation costs and risks associated with shipping samples to distant laboratories.

The device provides comprehensive elemental coverage from light to heavy elements, supporting analysis of virtually all economically important minerals and metals. Cost savings accumulate rapidly when considering the elimination of sample preparation, shipping, and laboratory fees across hundreds or thousands of measurements during typical exploration or production campaigns.

Conclusion

The ElvaX Geo Mining Exploration Spectrometer represents a significant advancement in portable analytical technology for the mining and geological exploration industries. Its combination of exceptional analytical performance, rugged field-ready design, and user-friendly operation makes it an indispensable tool for modern exploration and quality control programs. The unique 800 mm² analytical spot, extended battery life, and advanced software capabilities deliver laboratory-quality results in the most challenging field environments.

Whether conducting preliminary exploration surveys, monitoring production grade control, or performing detailed mineral characterization, the ElvaX Geo provides the accuracy, reliability, and convenience that mining professionals demand. Its ability to deliver immediate results while operating continuously in extreme conditions makes it an investment that quickly pays for itself through improved efficiency and reduced analytical costs. For organizations seeking to optimize their exploration and production operations with cutting-edge portable XRF technology, the ElvaX Geo stands as a proven solution backed by advanced engineering and real-world performance.​
