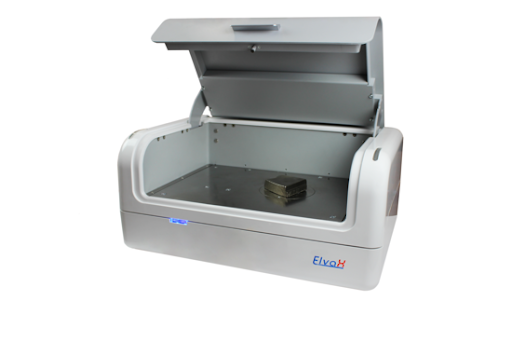

Benchtop XRF Analyzer: ElvaX Plus Laboratory Model

Laboratory-Grade Performance in Compact Design

The ElvaX Plus represents Elvatech's approach to accessible benchtop XRF analysis—delivering laboratory-quality performance without the complexity, size, or cost of premium research-grade systems. This energy-dispersive X-ray fluorescence spectrometer occupies minimal bench space while providing comprehensive analytical capabilities for routine and advanced elemental analysis.

The instrument analyzes elements from sodium (atomic number 11) through uranium (92), covering virtually all elements of commercial and scientific interest. This wide elemental range makes ElvaX Plus suitable for diverse materials: metal alloys, geological samples, ceramics, polymers, environmental samples, pharmaceuticals, and countless other matrices requiring multi-element characterization.

Compact dimensions approximately 430 × 340 × 200 millimeters and modest weight around 18 kilograms make ElvaX Plus practical for laboratories with limited bench space. The small footprint doesn't compromise capability—internal components incorporate advanced technology delivering performance typically associated with larger, more expensive systems.

Standard electrical requirements (90-240 V, 50/60 Hz) and low power consumption around 40-50 watts enable straightforward installation in typical laboratory environments worldwide. No special power conditioning or facility modifications are needed, reducing installation costs and complexity.

Advanced Detector Technology

High-Performance Silicon Drift Detector

The analytical heart of ElvaX Plus is a large-area silicon drift detector with 25 square millimeter active area—significantly larger than detectors in many competing systems. This substantial detector area captures more fluorescent X-rays from samples, improving sensitivity and reducing required measurement times.

Energy resolution specifications of approximately 140 eV at manganese Kα and 85 eV at aluminum Kα enable clear separation of closely-spaced spectral peaks from different elements. Superior resolution proves critical when analyzing complex multi-element matrices where overlapping peaks might confuse less capable systems.

The detector achieves remarkable count rate capacity exceeding 400,000 counts per second, with some specifications listing capability to 500,000 CPS. This high throughput enables rapid accumulation of statistically significant data, supporting fast analysis without sacrificing precision. Laboratories analyzing large sample volumes benefit dramatically from this speed advantage.

Dynamically Adaptive Shaping Technology

ElvaX Plus incorporates proprietary Dynamically Adaptive Shaping digital pulse processing that optimizes signal handling in real-time. This advanced electronics technology adjusts pulse shaping parameters dynamically based on incoming signal characteristics, maximizing both resolution and count rate capability simultaneously.

The 4096-channel multi-channel analyzer provides fine energy resolution across the full spectral range, ensuring precise peak positioning and accurate quantification. This digital architecture delivers stable, reproducible spectra supporting long-term calibration stability essential for quality control laboratories.

Optimized for Light Element Analysis

Helium Purge Capability

Light element detection—sodium, magnesium, aluminum, silicon, phosphorus, sulfur—presents challenges for standard air-path XRF systems because low-energy X-rays from these elements are absorbed by air between sample and detector. ElvaX Plus addresses this limitation through optional helium purge operation.

The helium atmosphere replaces air in the measurement chamber, dramatically reducing absorption of low-energy X-rays. This enhancement extends practical detection limits for light elements, enabling reliable quantification where standard air-path systems struggle. Applications involving polymers, ceramics, minerals, and many industrial materials benefit substantially from improved light element sensitivity.

The helium purge operates efficiently, consuming modest helium quantities while maintaining analysis convenience. Laboratories gain light element capabilities without the complexity and cost of full vacuum systems required for ultimate light element performance.

Automatic Primary Filter Changer

ElvaX Plus features automatic primary filter changing that optimizes excitation conditions for different elements without operator intervention. The system automatically selects appropriate filters based on measurement method, ensuring optimal excitation efficiency across the periodic table.

This automation improves analytical performance by matching excitation to sample characteristics while eliminating manual filter changes that slow workflows and introduce potential errors. The filters reduce spectral background, minimize matrix effects, and enhance sensitivity for specific element groups.

Diverse Sample Handling Capabilities

Benchtop XRF's practical advantage lies in accommodating diverse sample types through standardized presentation. ElvaX Plus handles solid samples including metal coupons, rock fragments, and manufactured products; pressed powder pellets prepared from heterogeneous materials; liquids in specialized sample cups; and thin films or coatings on various substrates.

The standard sample chamber accepts samples up to specified dimensions, while manual positioning ensures proper alignment for reproducible measurements. Optional upgrades expand capabilities further: a 16-position automatic sample changer enables unattended sequential analysis of multiple samples, dramatically increasing throughput for high-volume laboratories.

An optional high-resolution CCD camera provides visual sample positioning verification, ensuring consistent measurement locations for non-uniform samples or when analyzing specific features. This imaging capability proves valuable for quality documentation and method development.

Practical Laboratory Applications

Metal Alloy Analysis and Quality Control

Manufacturing quality control laboratories use ElvaX Plus for rapid alloy verification, ensuring incoming materials match specifications and finished products meet composition requirements. The analyzer identifies specific alloy grades and quantifies elemental percentages, preventing costly material mix-ups and production errors.

Analysis speed enables testing at multiple production stages: incoming inspection verifying supplier materials, in-process checks during fabrication, and final product certification before shipping. This comprehensive verification creates complete quality documentation supporting ISO standards and customer requirements.

The non-destructive nature preserves samples for additional testing or retention, while rapid results keep production flowing without quality control bottlenecks.

Geological and Mineral Analysis

Geological laboratories employ benchtop XRF for mineral identification, ore grade determination, and geochemical characterization. The wide elemental range captures major rock-forming elements plus trace constituents, providing complete compositional profiles supporting research and resource evaluation.

Sample preparation through fusion bead or pressed pellet methods creates homogeneous test specimens from heterogeneous geological materials, ensuring representative analysis. The speed and multi-element capability make benchtop XRF cost-effective compared to traditional wet chemistry requiring separate determinations for each element.

Polymer and Plastics Testing

The plastics industry uses XRF primarily for additive analysis and contamination screening. ElvaX Plus detects heavy metal pigments, flame retardants, stabilizers, and fillers while screening for restricted substances under RoHS and similar regulations.

The helium purge option extends capabilities to lighter additives and fillers containing aluminum, silicon, phosphorus, and sulfur—common constituents in polymer formulations. This comprehensive analysis supports product development, quality control, and regulatory compliance across the plastics industry.

Environmental and Compliance Testing

Environmental laboratories employ benchtop XRF for rapid screening of contaminated soils, sediments, and industrial waste materials. Heavy metal detection—lead, arsenic, mercury, cadmium, chromium—supports site investigations, remediation monitoring, and waste characterization.

The speed enables high-sample-volume screening that would be cost-prohibitive using traditional analytical methods. Samples exceeding action levels based on XRF screening then undergo confirmatory analysis, optimizing both speed and accuracy while controlling analytical costs.

User-Friendly Operation and Software

ElvaX Plus combines sophisticated analytical capability with straightforward operation accessible to technicians without specialized training. Intuitive software guides users through measurement setup, method selection, and result interpretation.

Pre-configured application packages provide ready-to-use calibrations for common materials: metal alloys, geological samples, environmental matrices, and industrial products. These factory-developed methods enable productive use immediately upon installation while allowing customization for specific requirements.

The software supports both fundamental parameters calculations for samples without matrix-matched standards and empirical calibrations using reference materials. This flexibility accommodates diverse analytical requirements from routine quality control to research applications.

Comprehensive data management features store results, link measurements to sample identifications, generate professional reports, and export data in multiple formats. Integration with laboratory information management systems streamlines workflows in high-volume testing environments.

Reliability and Support

Laboratory instrumentation must deliver consistent performance year after year with minimal maintenance and downtime. ElvaX Plus employs robust components proven in thousands of installations worldwide, ensuring reliable operation in demanding laboratory environments.

Routine maintenance requirements remain minimal—periodic X-ray tube inspection, detector temperature verification, calibration checks using reference standards. These straightforward procedures maintain optimal performance without specialized expertise or expensive service contracts.

Comprehensive technical support, application assistance, and training ensure laboratories maximize their investment. Access to application specialists helps optimize methods for specific materials, troubleshoot challenging samples, and develop custom calibrations for unique requirements.

Value Proposition for Laboratories

ElvaX Plus delivers professional benchtop XRF capabilities at accessible investment levels, typically priced competitively in the entry-to-mid laboratory segment. This positioning makes multi-element XRF analysis viable for organizations where budget constraints might otherwise limit analytical capabilities.

The combination of wide elemental range, fast analysis, minimal sample preparation requirements, and diverse sample compatibility reduces total analytical costs compared to maintaining multiple specialized instruments or outsourcing testing to commercial laboratories.

Return on investment comes through multiple channels: prevented material errors saving thousands in scrapped production, accelerated quality control keeping operations flowing, reduced outsourcing costs from in-house testing capability, and improved product development through rapid formulation screening.

For laboratories requiring reliable, versatile elemental analysis without premium system complexity and cost, ElvaX Plus represents compelling value balancing performance, convenience, and investment.

Conclusion

The ElvaX Plus benchtop XRF analyzer brings laboratory-quality elemental analysis to organizations requiring reliable multi-element characterization across diverse sample types. The combination of comprehensive sodium-to-uranium elemental coverage, fast analysis through high-performance detector technology, practical light element capability via helium purge, and compact benchtop convenience addresses real-world laboratory requirements efficiently.

Whether supporting metal alloy quality control, geological characterization, polymer analysis, environmental testing, or diverse research applications, ElvaX Plus delivers the analytical performance laboratories need without unnecessary complexity or expense. The straightforward operation, minimal maintenance requirements, and versatile sample handling make this benchtop model practical for routine use by technical staff without specialized training.

For laboratories building or expanding in-house analytical capabilities, the ElvaX Plus represents a proven platform combining performance, reliability, and value in a compact laboratory package ready to deliver accurate results day after day across countless applications.
