XRF Spectrometer: ElvaX Metal Analysis Solutions

Comprehensive Metal Analysis Capabilities

ElvaX XRF spectrometers excel at metal analysis through advanced detector technology, optimized excitation systems, and sophisticated analytical algorithms specifically developed for metallurgical applications. The systems measure all critical alloying elements that define metal grades and properties—from iron, chromium, nickel, and molybdenum in stainless steels to copper, zinc, manganese, and silicon in aluminum alloys.

The wide elemental range from sodium through uranium covers virtually every element used in commercial metal alloys. This comprehensive coverage enables complete characterization of complex multi-element compositions, identifying both intentional alloying additions and trace contaminants that affect material performance.

Analysis accuracy better than 0.3% for metal alloy concentrations meets stringent quality control requirements in demanding applications. This precision enables confident grade identification, specification verification, and quality certification supporting ISO standards and customer requirements.

Detection limits better than 1 ppm for most elements in light matrices support trace element analysis critical for high-performance alloys. The sensitivity enables detection of restricted elements under RoHS regulations, identification of minor alloying additions affecting properties, and contamination screening protecting product quality.

Stainless Steel Analysis and Verification

Comprehensive Grade Identification

Stainless steel analysis represents a core ElvaX capability, with systems accurately identifying and quantifying the complex compositions defining hundreds of grades. The analyzers measure iron as base element plus critical alloying additions: chromium (typically 10-30%), nickel (0-35%), molybdenum (0-8%), manganese, copper, titanium, niobium, and other constituents.

This comprehensive measurement enables precise differentiation between similar grades separated by subtle compositional differences. ElvaX systems distinguish austenitic 304 (18% Cr, 8% Ni) from 316 (18% Cr, 10% Ni, 2-3% Mo) from 321 (titanium-stabilized). Ferritic grades, duplex stainless steels, and precipitation-hardening varieties all receive accurate identification supporting material traceability.

Food-grade stainless steel verification requires particular attention to composition and contamination. ElvaX systems rapidly analyze key elements—chromium for corrosion resistance, nickel for stability, molybdenum for enhanced protection—ensuring materials meet food contact standards. The analysis happens in seconds, providing immediate compliance verification for manufacturing and quality control.

Corrosion-Resistant Alloy Testing

High-performance corrosion-resistant alloys containing elevated nickel, molybdenum, and specialty elements undergo accurate analysis with ElvaX systems. Super austenitic stainless steels, nickel-based alloys like Inconel and Hastelloy, and duplex grades with balanced ferrite-austenite structures require precise compositional control that ElvaX analysis supports.

The systems measure molybdenum and nitrogen (through proxy elements) critical for pitting resistance, copper additions enhancing certain corrosion mechanisms, and tungsten in specialized high-temperature alloys. This detailed characterization ensures materials meet demanding service requirements in chemical processing, marine environments, and high-temperature applications.

Aluminum Alloy Analysis

Aluminum alloy testing presents unique challenges due to aluminum's light atomic weight and low-percentage alloying additions, but ElvaX systems with helium purge capability reliably identify aluminum grades through precise measurement of silicon, magnesium, copper, manganese, zinc, chromium, and other alloying elements.

The technology distinguishes wrought aluminum series by characteristic alloying patterns: 2xxx series with copper for aerospace applications, 5xxx series with magnesium for marine use, 6xxx series with magnesium-silicon for extrusions, and 7xxx series with zinc for maximum strength. Cast aluminum alloys with higher silicon contents receive accurate identification supporting foundry quality control.

Specific grade differentiation within series—separating 6061 from 6063, or 7075 from 7050—requires measuring subtle compositional variations that ElvaX detector sensitivity and resolution detect reliably. This capability supports aerospace component verification where alloy grade directly impacts structural integrity and safety.

The aluminum analysis extends to automotive applications, construction materials, packaging industry requirements, and recycling operations where grade segregation impacts material value significantly. ElvaX systems provide the accurate, rapid aluminum testing these industries require.

Titanium and Specialty Alloy Analysis

Titanium alloy analysis requires precise measurement of aluminum, vanadium, iron, and other alloying additions defining grades from commercially pure titanium (Grades 1-4) through aerospace alloy Ti-6Al-4V (Grade 5) and medical-grade compositions. ElvaX systems deliver the accuracy titanium industries demand for component verification and quality certification.

The high-power X-ray excitation in ElvaX Pro models optimizes performance for titanium and other specialty metals, improving sensitivity and reducing analysis times. This enhanced capability supports aerospace manufacturing, medical device production, and chemical processing applications where titanium's unique properties justify premium costs—and where verification prevents expensive failures.

Nickel-based superalloys, cobalt alloys, tool steels, and other specialty compositions undergo comprehensive analysis with ElvaX platforms. The systems measure complex multi-element formulations containing chromium, molybdenum, tungsten, cobalt, niobium, tantalum, and other constituents in precisely controlled ratios.

Precious Metal Testing

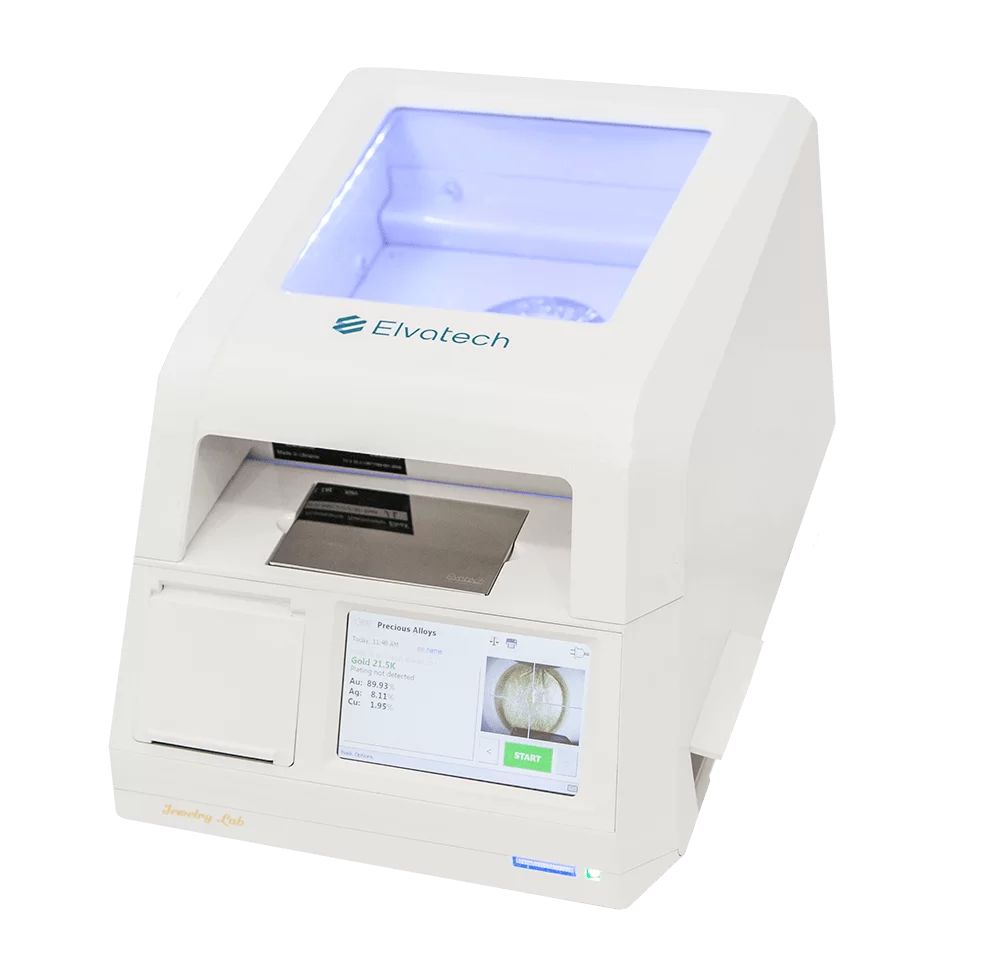

ElvaX Jewelry Lab represents specialized configuration optimized for precious metal analysis in jewelry, refining, and precious metal industries. The system instantly identifies purity and composition of gold, silver, platinum, and other precious metals with laboratory-grade precision.

High-accuracy analysis exceeding 0.1% supports critical applications requiring certified results—refining operations, jewelry manufacturing, hallmarking services, and precious metal trading. Results display in both percentage and karat values, accommodating industry-standard reporting formats.

The integrated high-resolution CCD camera enables pinpoint sample targeting, ensuring measurements on specific areas avoiding solder joints, settings, or other features that would distort bulk composition determination. Automatic collimator changing selects optimal measurement spot sizes for different sample types and analysis requirements.

Built-in high-accuracy scales and integrated printer generate complete analytical certificates documenting composition, weight, and calculated value—providing professional documentation for transactions, quality records, and customer reports. The rechargeable battery enables portable operation for field analysis at refiners, trade shows, or customer locations.

Industrial Metal Analysis Applications

Manufacturing Quality Control

Manufacturing facilities integrate ElvaX systems into quality assurance programs controlling material quality throughout production. Incoming material inspection verifies raw material chemistry before processing begins. In-process testing monitors composition during fabrication, detecting drift or contamination before affecting large batches. Final product certification documents that finished goods meet customer specifications and regulatory requirements.

The rapid analysis—typically 30 seconds to several minutes for complete multi-element determination—enables real-time quality decisions keeping production flowing. Results link to batch numbers and production records, providing complete traceability supporting quality management systems and customer audits.

Scrap Metal Recycling and Sorting

Scrap recycling operations employ ElvaX analysis for profitable material segregation. Accurate identification of stainless steel grades, aluminum alloys, copper compositions, and specialty metals maximizes material value through precise sorting. The technology distinguishes visually similar alloys commanding different market prices—separating 304 from 316 stainless, identifying nickel alloy content, characterizing copper alloy families.

Benchtop ElvaX systems handle high volumes through optional automatic sample changers processing dozens of samples unattended. The throughput capacity and analytical accuracy directly impact recycling profitability through improved material recovery and reduced contamination in sorted lots.

Research and Development

Materials research laboratories use ElvaX spectrometers for alloy development, process optimization, and property-composition correlation studies. The ability to rapidly analyze compositional variations supports experimental programs developing new alloys or optimizing existing formulations.

The non-destructive analysis preserves samples for mechanical testing, microstructural examination, or other characterization methods. Researchers obtain complete elemental profiles guiding interpretation of material behavior and supporting fundamental understanding of metallurgical principles.

ElvaX Platform Options for Metal Analysis

ElvaX Plus: Versatile Laboratory Solution

ElvaX Plus provides comprehensive metal analysis capabilities for routine quality control and research applications. The sodium-to-uranium elemental range covers all commercial alloying elements, while helium purge operation enhances light element sensitivity for aluminum alloys and other light-metal compositions.

High-throughput capability exceeding 400,000 counts per second enables rapid analysis supporting busy quality control laboratories. The compact benchtop design occupies minimal space while delivering performance meeting stringent analytical requirements.

ElvaX Pro: Maximum Performance

ElvaX Pro delivers ultimate benchtop XRF performance for demanding metal analysis applications. The high-power 60 kV, 12-watt X-ray tube optimizes excitation for heavy elements, rare earth additions, and trace constituents. Enhanced sensitivity and precision support certification-quality results for critical applications.

Automated features including multi-position collimator systems, 16-position sample changers, and sample spinners maximize throughput and analytical quality. These advanced capabilities suit high-volume production QC laboratories and research facilities requiring maximum performance.

ElvaX Industrial: Large Sample Analysis

ElvaX Industrial features enlarged analytical chamber accommodating objects up to 45 × 45 × 25 centimeters. This capability enables analysis of large metal parts, assemblies, and manufactured goods impossible to test in standard sample chambers. Industries producing large components—aerospace structures, automotive parts, industrial equipment—gain on-site compositional verification without destructive sampling.

Conclusion

ElvaX XRF spectrometers provide comprehensive metal analysis solutions addressing diverse metallurgical applications across manufacturing, quality control, recycling, research, and specialty metal industries. The combination of accurate multi-element analysis, rapid testing speed, and practical versatility makes ElvaX platforms essential tools for organizations requiring reliable material characterization.

From stainless steel verification ensuring corrosion resistance and food safety, through aluminum alloy identification supporting aerospace quality, to precious metal testing serving jewelry and refining industries, ElvaX systems deliver the analytical performance metal industries demand. The range of platform options—from versatile ElvaX Plus through high-performance ElvaX Pro to specialized Jewelry Lab and Industrial configurations—ensures solutions matching specific operational requirements and budgets.

For metal manufacturers, processors, recyclers, and researchers committed to material quality, process control, and operational excellence, ElvaX XRF spectrometers represent proven analytical solutions delivering accurate, rapid metal composition data supporting informed decisions, preventing costly errors, and ensuring products meet specifications and regulatory requirements.
