Handheld XRF Spectrometer: ProSpector 2

Proven Performance and Reliability

The ProSpector 2 has established itself as a workhorse handheld XRF platform through years of field service across demanding industries. Thousands of installations worldwide demonstrate the reliability and capability organizations require for critical materials testing. This proven track record provides confidence that ProSpector 2 will deliver consistent results day after day, year after year.

The platform incorporates advanced silicon drift detector technology achieving energy resolution around 140 eV at manganese Kα—performance ensuring clear separation of closely-spaced spectral peaks for accurate element identification and quantification. The large-area SDD detector captures maximum fluorescent X-rays from samples, improving sensitivity and reducing required measurement times.

Exceptional count rate capability exceeding 500,000 counts per second enables rapid data accumulation without detector saturation. This high throughput supports fast analysis—typically 2-5 seconds for alloy grade identification, 10-30 seconds for comprehensive multi-element quantification including trace constituents. The speed translates directly to operational productivity and testing efficiency.

Revolutionary Speed Through DAS Technology

ProSpector 2 achieves remarkable analysis speed through proprietary Dynamically Adaptive Shaping digital pulse processing. This advanced electronics technology optimizes signal handling in real-time, adjusting pulse shaping parameters dynamically based on incoming signal characteristics. The intelligent processing maximizes both energy resolution and count rate capability simultaneously—eliminating traditional trade-offs that constrained previous-generation analyzers.

The technology reportedly delivers analysis four times faster than comparable handheld XRF systems. Applications requiring 20-30 seconds with conventional analyzers complete in 5-10 seconds with ProSpector 2. This speed advantage multiplies across hundreds of daily measurements, dramatically enhancing productivity. Scrap sorters process more material per shift. PMI inspectors verify more components. Quality control teams test larger sample volumes—all without sacrificing analytical accuracy.

Two Configuration Options

ProSpector 2 LE: Light Edition

The ProSpector 2 LE (Light Edition) provides entry-level handheld XRF capability for straightforward alloy sorting and basic identification applications. This configuration employs Si-PIN detector technology delivering reliable performance for common metal testing at accessible pricing. Organizations requiring basic alloy verification without advanced features find LE configuration meets needs cost-effectively.

The Light Edition suits scrap sorting operations, basic quality control, and applications where rapid grade identification of ferrous and non-ferrous alloys drives value. While offering reduced capabilities compared to standard SDD configuration, LE delivers dependable service for budget-conscious organizations entering portable XRF testing.

ProSpector 2 Standard: Professional Performance

The standard ProSpector 2 configuration incorporates a large-area silicon drift detector delivering professional-grade performance. The advanced SDD technology provides superior energy resolution, exceptional count rate capability, and enhanced sensitivity supporting comprehensive quantitative analysis and trace element detection.

This configuration suits demanding applications requiring certified accuracy, trace sensitivity, and detailed compositional analysis. Manufacturing quality control, critical PMI programs, precious metals testing, and applications where analytical performance directly impacts operational success benefit from standard SDD-equipped models.

Comprehensive Analytical Capabilities

Wide Elemental Range

ProSpector 2 analyzes elements from magnesium (atomic number 12) through uranium (92), covering virtually all commercially significant elements. This broad coverage enables analysis of diverse materials: ferrous and non-ferrous alloys, precious metals, geological samples, environmental matrices, and specialized materials across industries.

The multi-element capability simultaneously detects and quantifies 25-35 elements from single measurements. Users receive complete compositional profiles including major constituents, alloying elements, and trace contaminants—comprehensive information supporting informed material decisions without multiple specialized tests.

Alloy Identification and Grading

Built-in alloy grade libraries containing thousands of international specifications enable instant grade identification. The analyzer compares measured compositions against ASTM, EN, DIN, JIS, GB, and GOST standards, automatically identifying specific grades and displaying results clearly on the touchscreen.

Stainless steel identification distinguishes austenitic, ferritic, duplex, and precipitation-hardening grades. Aluminum alloy analysis separates wrought series and cast compositions. Titanium grades, copper alloys, nickel-based superalloys, and specialty metals all receive accurate classification supporting material traceability and quality assurance.

The grade identification happens in seconds, enabling rapid verification preventing material mix-ups. Manufacturing receives confirmation that delivered materials match purchase orders. Fabricators verify correct alloys before expensive machining. Inspectors document that installed components meet specifications.

Rugged Field Construction

Field testing demands durable equipment, and ProSpector 2 delivers industrial-grade rugged construction. The sealed housing resists dust, moisture, and environmental contamination. Robust design withstands drops, impacts, and vibration typical in industrial environments. Operating temperature range accommodates field conditions from cold winters to hot summers.

The ruggedized construction ensures reliable operation in challenging locations: dusty foundries, wet marine environments, muddy construction sites, remote mining operations. Thousands of hours of field service prove ProSpector 2 maintains analytical performance under real-world conditions that challenge delicate laboratory instruments.

Protective features include reinforced housing, sealed connectors, and impact-resistant display. These design elements minimize downtime from field damage while extending instrument working life. Organizations operating analyzers in harsh environments benefit from construction prioritizing durability without compromising analytical capability.

User-Friendly Operation

ProSpector 2 combines sophisticated analytical capability with straightforward operation accessible to technicians without specialized training. Large color touchscreen displays clear results using icon-based menus and intuitive navigation. Point-and-shoot functionality requires simply positioning the analyzer against samples and pressing the trigger—results appear within seconds.

Multiple measurement modes accommodate different testing scenarios. Quick screening mode delivers rapid grade identification in 2-3 seconds for high-throughput sorting. Precision mode extends analysis time to 20-30 seconds, accumulating better counting statistics for accurate trace quantification. Users select modes matching application requirements—speed when throughput matters, precision when certification-quality results are essential.

Built-in data management stores thousands of test results including complete analytical data, timestamps, operator identification, and optional GPS location tags. Wireless connectivity via WiFi and Bluetooth enables seamless data transfer to computers, tablets, or smartphones for reporting and quality management integration. Export capabilities in multiple formats support diverse documentation requirements.

Extended Battery Life

High-capacity rechargeable lithium-ion batteries provide 8-12 hours continuous field operation between charges—full work shifts without recharging. The extended battery life suits remote locations, high-volume testing campaigns, and situations where charging opportunities are limited.

Hot-swappable battery design allows continuing work while depleted batteries charge externally. Users maintain uninterrupted testing by rotating charged batteries into the analyzer as needed. This capability proves essential during time-critical inspections, plant shutdowns, or high-throughput sorting operations where downtime costs productivity.

Intelligent power management optimizes battery life by adjusting X-ray tube output and detector settings based on measurement requirements. The system balances analytical performance with power consumption, maximizing productive operation per charge.

Diverse Application Support

Manufacturing Quality Control

Manufacturing facilities integrate ProSpector 2 into quality assurance programs at multiple production stages. Incoming material inspection verifies chemistry before processing. In-process testing monitors correct material selection during fabrication. Final inspection certifies finished products meet specifications. The portable testing eliminates sample transport to laboratories, supporting lean manufacturing and just-in-time production.

Scrap Metal Recycling

Recycling operations depend on ProSpector 2 for profitable material segregation. Rapid alloy identification enables sorting hundreds of pieces per shift, creating homogeneous lots commanding premium prices. The analyzer distinguishes visually similar alloys that manual sorting cannot separate, maximizing material values through accurate classification.

PMI and Construction Inspection

Construction projects implement comprehensive PMI programs using ProSpector 2 to verify piping, vessels, and structural components match specifications. The field capability enables testing installed equipment in place without disassembly. GPS tagging and photographic documentation create complete quality records proving correct materials were installed.

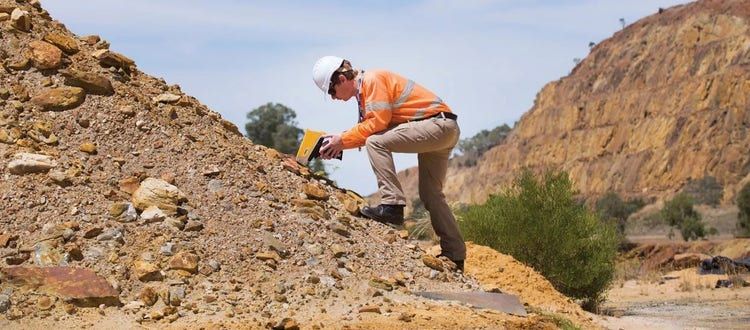

Mining and Exploration

Field geologists use ProSpector 2 for ore grade analysis during exploration and production. Immediate geochemical data guides drilling programs and resource estimation without laboratory delays. The portability enables testing in remote locations lacking infrastructure, supporting exploration projects worldwide.

Value Proposition

ProSpector 2 delivers professional handheld XRF capability at competitive pricing typically in the low-to-mid twenties range depending on configuration and included accessories. This positioning makes reliable portable XRF accessible to organizations where budget constraints might otherwise limit options.

The proven platform reduces risk through thousands of successful installations demonstrating reliability, performance, and long-term value. Organizations invest confidently knowing ProSpector 2 has established a track record supporting critical materials testing across demanding applications and harsh environments.

The combination of analytical performance, operational speed, rugged durability, and accessible pricing creates a compelling value proposition. Return on investment comes through prevented material errors, accelerated workflows, improved quality control, and enhanced operational efficiency—benefits typically recovering purchase cost within months for many applications.

Conclusion

The ProSpector 2 handheld XRF spectrometer represents proven, reliable technology delivering professional-grade elemental analysis in rugged portable package. The platform's exceptional speed through DAS technology, comprehensive analytical capabilities, field-durable construction, and user-friendly operation address real-world materials testing requirements across industries.

Whether supporting manufacturing quality control, enabling profitable scrap recycling, ensuring construction material integrity, or accelerating mining exploration, ProSpector 2 provides the accurate, rapid compositional data that prevents errors, optimizes operations, and supports confident material decisions. The established platform's track record, competitive pricing, and proven performance make ProSpector 2 a trusted solution for organizations requiring dependable handheld XRF capability.

For professionals seeking reliable portable materials analysis combining performance, durability, and value, the ProSpector 2 delivers field-proven technology supporting quality assurance, operational efficiency, and competitive success across diverse applications worldwide.
