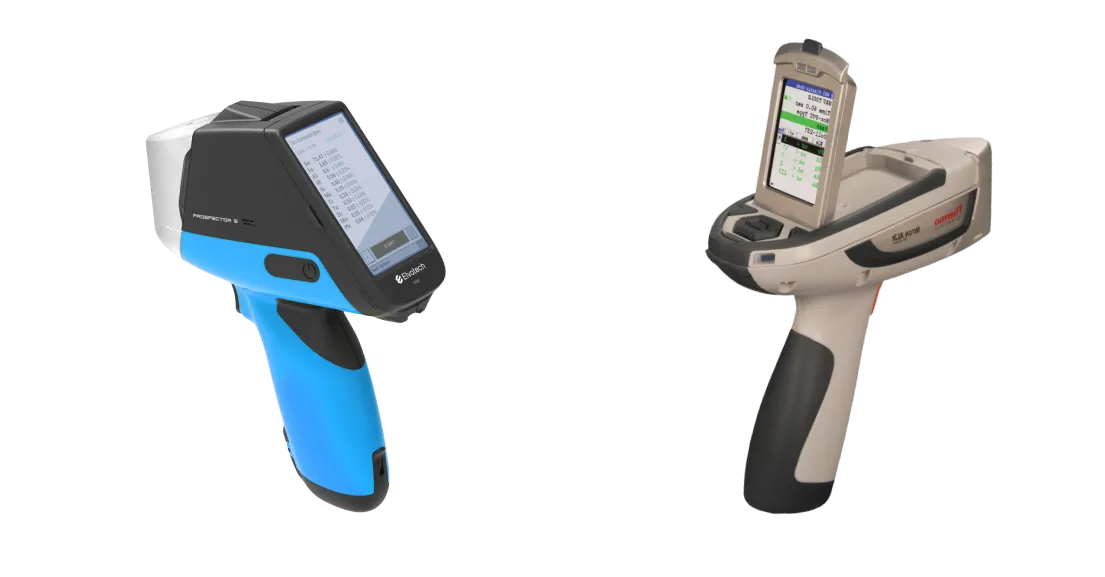

ProSpector Handheld XRF: Complete Analyzer Lineup

Understanding the ProSpector Platform

ProSpector represents Elvatech's flagship handheld XRF analyzer platform engineered for professional metal testing across industries demanding portability, speed, and accuracy. The complete lineup spans from budget-conscious entry models through advanced configurations incorporating premium technology, sophisticated features, and maximum analytical capability. Each configuration maintains core ProSpector advantages—exceptional speed, comprehensive elemental coverage, rugged field reliability, intuitive operation—while offering differentiated capabilities matching varying professional requirements.

X-ray fluorescence technology provides the analytical foundation. High-energy X-rays from the analyzer excite atoms in metal samples causing characteristic fluorescent emission at element-specific energies. Advanced detectors capture emissions creating spectral signatures revealing elemental composition. Sophisticated algorithms convert spectral data into precise elemental concentrations and alloy grade identifications within seconds.

The non-destructive testing preserves all materials completely—no cutting, no sample preparation, no material consumption. Test finished products, installed equipment, precious items, or irreplaceable materials repeatedly without damage. This preservation proves invaluable where any material loss or surface marking reduces value significantly.

ProSpector 2: Proven Workhorse Platform

Established Technology and Reliability

ProSpector 2 represents proven technology trusted through thousands of worldwide installations. This reliable platform delivers ultimate measurement quality through advanced electronics and state-of-the-art signal processing algorithms combining power with accessible operation. The established technology demonstrates proven performance across diverse applications and challenging field environments.

Key ProSpector 2 specifications:

• Compact dimensions 242 × 230 × 78 millimeters
• Lightweight 1.4 kilograms enabling comfortable extended use
• Fast silicon drift detector achieving 140 eV energy resolution
• Count rate capability exceeding 500,000 counts per second
• Alloy grade identification in 2-5 seconds
• Comprehensive quantitative analysis in 10-30 seconds
• IP54 environmental protection
• Operating temperature range -20°C to +40°C
• Approximately 10 hours battery operation
• Elemental range magnesium through uranium
• Extensive built-in alloy grade libraries
• Ergonomic pistol-grip design

ProSpector 2 Model Variants

Standard configuration provides proven performance at accessible pricing suitable for organizations prioritizing value and reliability. The basic model delivers solid metal analysis capability meeting requirements for routine quality control, alloy verification, and field screening.

GOLDD+ configuration features larger silicon drift detector delivering enhanced count rate and improved detection limits. The performance upgrade supports faster analysis and better trace element sensitivity justifying modest premium investment for demanding applications.

Light element configuration optimizes magnesium and aluminum detection critical for aluminum aerospace alloys. The specialized setup enables superior light element performance for applications where standard configuration lacks adequate sensitivity.

ProSpector 3: Next-Generation Innovation

Revolutionary Speed and Compact Design

ProSpector 3 represents breakthrough handheld analyzer innovation combining unprecedented speed with exceptional miniaturization. The ultra-compact 236 × 193 × 68 millimeter dimensions and remarkable 1.05 kilogram weight create the smallest, lightest professional XRF analyzer available. This exceptional portability reduces operator fatigue while enabling testing in confined spaces impossible with bulkier instruments.

Revolutionary analysis speed exceeds ProSpector 2 performance—alloy identification completes in 1-2 seconds enabling testing over 1000 samples per shift. The exceptional throughput exceeding 500,000 counts per second combined with optimized algorithms delivers both speed and precision impossible with previous generations.

Innovative Dual-Mode Operation

The groundbreaking folding display enables unique dual-mode functionality distinguishing ProSpector 3 from conventional handheld analyzers. In handheld configuration, the display folds back creating compact pistol-grip form for field testing. Deployed on optional laboratory stand, the display unfolds providing comfortable viewing for benchtop operation.

This revolutionary versatility transforms single instrument into both field tester and laboratory analyzer without requiring computer connection. The flexibility enables organizations to deploy comprehensive analytical capability across diverse locations—field sites, manufacturing floors, laboratory environments—from unified platform. The operational efficiency justifies premium investment through comprehensive functionality.

Advanced ProSpector 3 Features

Automatic two-position collimator changer enables large-area analysis and pinpoint small-spot measurement. The pinpoint 0.5-1 millimeter capability enables testing jewelry, weld joints, small fasteners, and delicate components avoiding contamination from composite structures.

Dual integrated high-resolution CCD cameras provide macro and micro sample views ensuring precise targeting and creating photographic documentation. Built-in magnification helps operators position measurement beams accurately confirming exactly where analysis occurs.

IP65 environmental rating provides dust-tight and water-resistant protection exceeding ProSpector 2's IP54 rating. The enhanced protection suits extreme field conditions where contamination, precipitation, or washdown procedures challenge equipment reliability.

Extended battery life 12-16 hours supports full-day field operations and multi-day remote campaigns without charging constraints. Hot-swappable battery designs enable uninterrupted testing rotating charged batteries as needed during time-critical inspections.

Complete Feature Comparison

Application-Specific Selection

High-Volume Scrap Sorting

Scrap recycling operations processing hundreds of pieces hourly benefit from ProSpector 3's 1-2 second grade identification enabling maximum throughput. The compact lightweight design reduces operator fatigue during extensive daily testing. ProSpector 2 provides adequate performance for lower-volume operations where speed premium doesn't justify additional investment.

Manufacturing Quality Control

Production facilities integrate both platforms strategically—ProSpector 3 for rapid in-line verification and ProSpector 2 for comprehensive laboratory testing. The flexibility enables matching analyzer capability to testing requirements throughout manufacturing workflows.

Field PMI Inspection

Construction PMI programs verify thousands of components during facility construction. ProSpector 3's enhanced environmental protection (IP65), extended battery life, and GPS integration suit extensive field campaigns. ProSpector 2 provides viable alternative where environmental conditions are less severe.

Mining and Exploration

Remote geological exploration demands rugged portable instruments. ProSpector 3's superior environmental protection and extended battery life support multi-day field campaigns in harsh conditions. The advanced technology justifies premium investment for professional exploration operations.

Precious Metal Testing

Jewelry retailers, pawn shops, and gold buyers employ ProSpector models for instant purity determination. The non-destructive testing preserves item value while confirming authenticity. Integrated alloy libraries identify gold karats and silver fineness instantly supporting transaction decisions.

Software and Data Management

Intuitive Operation

Windows CE7 operating system provides familiar interface enabling rapid operator proficiency. Touchscreen controls support straightforward method selection, measurement initiation, and result interpretation accessible without extensive training. The user-friendly design ensures productive testing from first use.

Comprehensive Data Management

Built-in storage records thousands of test results including complete elemental data, timestamps, operator identification, GPS coordinates, and photographs. Multiple connectivity options—USB, Bluetooth, optional WiFi—enable flexible data workflows. Wireless transfer integrates results with enterprise systems seamlessly.

Editable Grade Libraries

Extensive built-in alloy libraries contain thousands of international specifications. Users add, modify, or delete library entries matching operational requirements without manufacturer intervention. The customization capability enables tailoring instruments to specific company standards and proprietary alloys.

Quality System Integration

Modern ProSpector analyzers support quality management system integration through data export capabilities, automated reporting, and comprehensive documentation. The integration enables seamless workflow automation across quality control operations.

Accessories and Customization

Laboratory stands enable benchtop operation transforming portable analyzers into stationary testing stations. Optional collimator kits add measurement flexibility for specialized applications. Protective cases, spare batteries, and carrying holsters support extended field deployments.

Wireless connectivity modules enable real-time data transfer to computers or mobile devices. High-capacity battery packs extend operation for multi-day remote campaigns. These comprehensive accessories enable customizing ProSpector systems to specific operational requirements.

Professional Support Infrastructure

Elvatech provides comprehensive manufacturer support distinguishing premium equipment from basic instruments. Technical support assists with method development, troubleshooting, and optimization. Regular calibration services maintain analytical accuracy through certified reference materials. Software updates deliver capability enhancements and regulatory compliance updates. Training programs ensure operator proficiency maximizing equipment capabilities.

The manufacturer backing protects equipment investment ensuring long-term analytical success and operational reliability.

Total Cost of Ownership

ProSpector 2 systems typically cost $15,000-25,000 depending on configuration. ProSpector 3 premium positioning reflects advanced technology commanding $20,000-35,000 depending on selected features. Investment analysis should include acquisition cost, calibration standards, consumables, maintenance, support services, and operational benefits over typical 10-15 year equipment lifecycles.

Return on investment comes through prevented material errors, accelerated workflows, improved quality control effectiveness, and enhanced operational confidence. Organizations typically recover purchase costs within months through eliminated laboratory fees, prevented costly mistakes, and improved efficiency.

Conclusion

The complete ProSpector handheld XRF analyzer lineup delivers comprehensive metal analysis solutions addressing diverse professional requirements from budget-conscious entry through premium next-generation capability. ProSpector 2's proven reliability, established performance, and cost-effectiveness suit organizations prioritizing value and proven technology. ProSpector 3's revolutionary speed, innovative dual-mode operation, advanced features, and superior environmental protection deliver next-generation capability justifying premium investment for demanding applications.

Both platforms share core ProSpector advantages—exceptional analysis speed delivering seconds-scale compositional results, comprehensive elemental coverage detecting magnesium through uranium simultaneously, non-destructive testing preserving valuable materials, portable design enabling field deployment, rugged construction ensuring reliable operation in harsh conditions, and intuitive operation accessible without extensive training.

For professionals requiring reliable handheld metal analysis—whether manufacturing quality control, construction PMI verification, scrap sorting, mining exploration, or precious metal testing—the complete ProSpector lineup provides proven technology supporting operational excellence, quality assurance, and competitive success across industries worldwide where portable XRF analysis drives efficient materials testing and confident decision-making.
