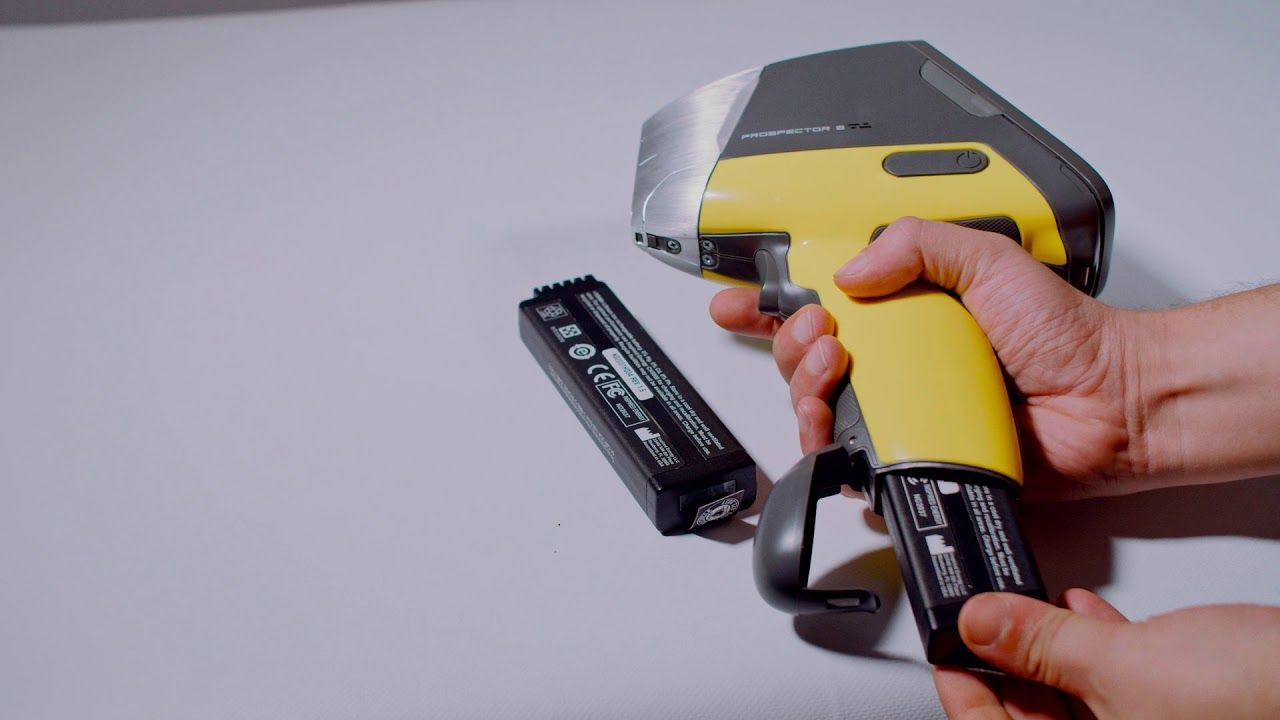

ProSpector 3: Fastest Handheld XRF >500k CPS

Understanding >500k CPS Performance

Count rate—photons processed per second—fundamentally determines portable analyzer capability. Detection systems capturing >500,000 counts per second accumulate elemental data at extraordinary speed. This exceptional throughput enables statistical measurements completing in fractions of conventional timeframes, transforming feasible daily analysis volumes from hundreds to thousands of samples.

The relationship between count rate and measurement time proves mathematically elegant. Achieving statistical reliability typically requires accumulating 10,000-100,000 photon counts per element. A detector processing 500,000+ CPS completes this accumulation in one-twentieth to one-hundredth the time of conventional 50,000 CPS systems. The proportional speed advantage translates directly to operational efficiency—analyzing 1000 metal pieces in 2-3 hours versus 12-15 hours with conventional systems.

ProSpector 3's >500k CPS performance represents technological achievement through advanced silicon drift detector innovation, optimized X-ray source intensity, sophisticated signal processing electronics, and precision pulse handling—engineering excellence delivering maximum photon throughput without sacrificing energy resolution or analytical accuracy. The capability distinguishes ProSpector 3 as industry-leading in portable analyzer speed.

Advanced Silicon Drift Detector Technology

Next-Generation SDD Design

Silicon drift detectors in ProSpector 3 achieve >500k CPS through revolutionary electrode architecture optimizing charge collection and photon processing speed. Concentric ring electrode designs create electric fields efficiently drifting charge carriers toward central collection anodes in minimal time. This architecture enables rapid sequential photon handling processing photons arriving microseconds apart without pile-up or signal distortion.

The detector simultaneously achieves superior energy resolution approximately 125-130 eV at manganese Kα—approximately 15 eV better than ProSpector 2's 140 eV. This enhanced resolution clearly separates closely-spaced elemental peaks in complex alloy spectra containing 20-40+ simultaneous elements. The combination of exceptional speed and superior resolution proves revolutionary—previous-generation detectors forced trade-offs between throughput and spectral quality.

Large active area—25-50 square millimeters—captures maximum fluorescent X-rays from samples. Larger detector surface area coupled with high-speed electronics enables more photons to reach the detector and successfully process, exponentially boosting overall count rate performance. The combination of large area and fast processing produces the >500k CPS advantage.

Precision Thermoelectric Cooling

ProSpector 3's enhanced cooling maintains ultra-stable detector temperature crucial for consistent high-speed operation. Temperature stability proves critical at extreme count rates where thermal drift degrades performance. Advanced cooling maintains optimal operating conditions despite ambient temperature variations from -20°C to +50°C, ensuring reliable >500k CPS performance across extreme field conditions.

Optimized X-Ray Excitation System

Efficient Primary Radiation Generation

ProSpector 3's X-ray source generates intense primary radiation efficiently exciting sample atoms. The miniature tube optimizes electron-to-X-ray conversion despite compact 4-8 watt power consumption in handheld format. Higher primary beam intensity excites more atoms producing proportionally more fluorescent X-rays. Every photon reaching the detector improves measurement speed and count rate efficiency.

Variable voltage operation from 10-50 kilovolts enables element-specific excitation optimization. Lower voltages efficiently excite light elements—magnesium, aluminum critical in aerospace alloys. Higher voltages penetrate to excite heavy elements—molybdenum, tungsten in specialty steels. Automatic optimization matches excitation to analyzed materials maximizing fluorescence efficiency and photon output feeding the detector.

Multi-Position Filter Optimization

Automatic filter changer selecting optimal primary beam filtering for different materials reduces background, minimizes matrix effects, and enhances signal-to-noise ratios. Appropriate filters maximize useful fluorescent photon production improving count rate efficiency. The optimized primary beam directly boosts photon yield reaching the detector enabling faster count rate accumulation.

Revolutionary Digital Signal Processing

Ultra-Fast Pulse Processing

Breakthrough signal processing electronics convert detector outputs into precise energy measurements at unprecedented speed. Dynamically Adaptive Shaping (DAS) digital pulse processing with ultra-fast sampling optimizes both energy resolution and count rate simultaneously. The advanced algorithm processes individual photon pulses extracting maximum information while handling rapid photon arrival rates exceeding 500,000 per second.

High-speed analog-to-digital converters capture detector signals with minimal distortion. Real-time digital filtering removes noise improving signal clarity. Sophisticated pile-up correction prevents count loss when multiple photons arrive simultaneously. The comprehensive processing enables achieving >500k CPS while maintaining energy resolution typically 125-130 eV—performance impossible with conventional electronics.

Real-Time Spectral Analysis

Advanced electronics enable real-time spectral analysis and result calculation. Operators observe spectra building, elements identifying, concentrations calculating during measurement. The immediate feedback provides confidence in data quality and measurement completeness. Progressive analysis visibility proves particularly valuable for field testing where confirming sufficient data accumulation prevents premature termination.

Speed Advantages in Practical Operations

Ultra-Rapid Grade Identification

ProSpector 3's exceptional speed enables alloy grade identification completing in just 1-2 seconds—the fastest handheld analysis available. The rapid measurement accumulates sufficient elemental data for confident grade classification in minimal timeframe. Stainless steel grades distinguish through chromium-nickel-molybdenum profiles in seconds. Aluminum series separate through elemental patterns instantly. Copper alloy families classify through compositional fingerprints—all within seconds.

This extraordinary speed enables sorting 1000+ metal pieces per shift in scrap yard operations. Conventional 10-15 second grade identification limits throughput to 250-400 pieces daily. ProSpector 3's 1-2 second capability multiplies daily processing volume—directly improving scrap recycling profitability through enhanced volume and accuracy.

Comprehensive Analysis in Seconds

Comprehensive quantitative analysis measuring precise elemental percentages completes in 10-20 seconds with ProSpector 3's exceptional speed. The high count rate accumulates superior statistical data in brief timeframes enabling accurate minor element and trace constituent measurement. Organizations requiring detailed compositional profiles for certification or process control receive complete analytical data in practical field timeframes.

The speed enables high-volume production testing supporting inline quality verification. Manufacturing facilities test components continuously throughout production without creating workflow bottlenecks. Rapid analysis fits naturally into lean manufacturing principles maintaining production momentum while ensuring comprehensive quality verification.

Extended Battery Performance Despite Speed

Despite extraordinary count rate and speed capability, ProSpector 3 maintains excellent power efficiency. Intelligent power management optimizes energy consumption supporting 12-16 hour battery operation—extended beyond most competitors. Users operate full work shifts or multi-day field campaigns without charging constraints. Hot-swappable battery designs enable uninterrupted testing rotating charged batteries during time-critical operations.

Revolutionary Compact Design

ProSpector 3's ultralight 1.05-kilogram weight and ultra-compact 236 × 193 × 68 millimeter dimensions create the smallest, lightest handheld analyzer achieving >500k CPS. This exceptional miniaturization proves revolutionary—combining industry-fastest speed with true portability. Operators work extended hours without fatigue. Testing occurs in confined spaces, elevated positions, or awkward angles impossible with bulkier instruments.

The innovative folding display enables dual-mode operation—handheld field testing or benchtop laboratory analysis without computer requirements. This versatility transforms single instrument into field tester and laboratory analyzer addressing diverse operational requirements.

Advanced Features Supporting Speed

Dual Integrated Cameras

High-resolution macro and micro cameras enable precise targeting ensuring measurement beams hit intended areas. The magnified views support accurate positioning critical for small jewelry, weld joints, or specific alloy sections. Camera documentation creates photographic records automatically linking to analytical results supporting complete quality verification.

Automatic Two-Position Collimator

Pinpoint collimator capability from 0.5-1 millimeter enables testing tiny jewelry, fasteners, or composite structures avoiding contamination from adjacent materials. Large-area collimator handles standard samples. The automatic changer enables rapid switching supporting diverse testing requirements without manual reconfiguration.

IP65 Enhanced Environmental Protection

Dust-tight and water-resistant protection exceeds conventional IP54 ratings. ProSpector 3 operates reliably in extreme field conditions—wet environments, dusty locations, temperature extremes. The robust design ensures >500k CPS performance regardless of challenging field conditions.

GPS Integration and Wireless Connectivity

Built-in GPS automatically tags analytical results with geographic coordinates supporting location-based quality management. Wireless connectivity enables real-time data transfer to computers, tablets, or smartphones. The integrated data management creates complete analytical records supporting quality system compliance and regulatory documentation.

Applications Maximizing Speed Benefits

Scrap Metal Recycling Operations

Recycling depends on rapid material classification. ProSpector 3's 1-2 second identification enables processing 500-1000+ pieces per shift. Accurate compositional segregation maximizes material values preventing valuable alloys from downgrading into mixed lots. The operational efficiency directly increases daily recycling revenue.

Manufacturing Production Quality Control

Inline quality verification requires speed matching manufacturing pace. ProSpector 3 enables comprehensive testing throughout production without creating bottlenecks. Rapid results support immediate acceptance decisions preventing further processing of non-conforming materials, reducing waste and costs.

Field PMI Inspection Programs

Construction facility verification requires testing thousands of components meeting tight project schedules. ProSpector 3's rapid analysis enables comprehensive PMI without extending inspection timelines. GPS tagging and photography create complete inspection documentation proving material compliance.

Mining and Exploration Operations

Field geologists employ ProSpector 3 for immediate ore grade assessment guiding drilling decisions in real-time. The rapid feedback enables tactical adjustments optimizing exploration efficiency and resource discovery.

Performance Specifications Summary

• Count Rate: >500,000 photons per second

• Grade Identification: 1-2 seconds

• Quantitative Analysis: 10-20 seconds

• Energy Resolution: 125-130 eV

• Weight: 1.05 kilograms

• Dimensions: 236 × 193 × 68 millimeters

• Environmental Rating: IP65

• Battery Life: 12-16 hours

• Elemental Range: Magnesium through uranium

• Features: Folding display, dual cameras, automatic collimators, GPS, wireless connectivity

Conclusion

ProSpector 3 represents revolutionary handheld XRF analyzer breakthrough achieving industry-leading >500,000 counts per second performance enabling 1-2 second alloy identification and 10-20 second comprehensive analysis. The advanced silicon drift detector technology, optimized excitation system, sophisticated digital signal processing, and precision electronics combine delivering the fastest portable metal analysis available.

The exceptional speed directly translates to operational advantages across industries—scrap recycling maximizes daily processing volume through rapid material classification, manufacturing quality control enables comprehensive inline testing supporting lean production, field PMI inspection completes comprehensive verification within tight project schedules, mining exploration accelerates discovery through immediate geochemical data. ProSpector 3's combination of ultra-fast >500k CPS capability, revolutionary ultralight compact design, advanced features, and IP65 environmental protection creates unprecedented portable analyzer capability.

For professionals requiring industry-fastest handheld metal analysis combining exceptional speed with laboratory-grade accuracy, non-destructive sample preservation, and true field portability, ProSpector 3 represents cutting-edge technology supporting operational excellence, enhanced productivity, and competitive success across industries worldwide where analysis speed drives testing efficiency and profitability.
