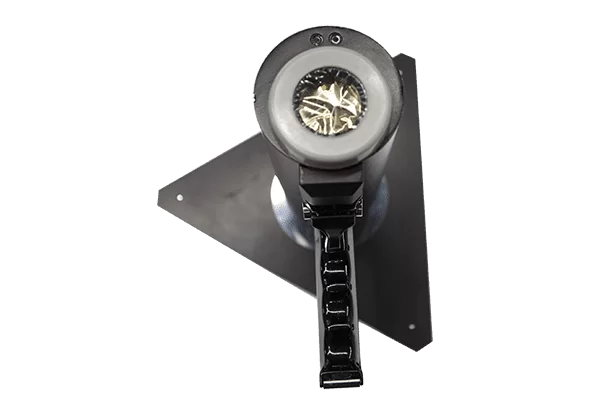

Portable XRF Soil Geology: ElvaX Geo

Understanding Portable XRF Technology for Geochemical Analysis

X-ray fluorescence technology enables rapid multi-element characterization of soils, rocks, ores, concentrates, and tailings directly in the field. When the analyzer's X-ray beam strikes a sample, it excites atoms within the material, causing them to emit characteristic fluorescent X-rays unique to each element. The ElvaX Geo detects these emissions and converts them into precise elemental concentration data within seconds, eliminating the need for laboratory delays that traditionally slow exploration programs.

Modern portable XRF instruments can detect elements from chlorine (Z=17) to uranium (Z=92), providing comprehensive geochemical profiles essential for mineral exploration and environmental monitoring. This technological advancement has revolutionized fieldwork by enabling geologists to make informed drilling decisions, identify mineralization zones, and optimize sampling strategies in real-time.

Key Features of ElvaX Geo for Soil and Geological Applications

The ElvaX Geo distinguishes itself through several features specifically designed for demanding field environments. The instrument's 800 mm² analytical spot significantly increases the averaging capability for inhomogeneous samples, which is critical when analyzing naturally variable geological materials. This larger measurement area reduces sampling error and provides more representative data compared to smaller spot analyzers.

The analyzer operates continuously for up to 8 hours on a single Li-Ion battery charge, supporting extended field campaigns without interruption. Its composite pole attachment enables comfortable body positioning during prolonged use and facilitates analysis of hard-to-reach locations such as outcrop faces or deep excavation walls. The unique hands-free operation mode allows measurements during slow walking while communicating results through headphones, dramatically increasing sampling density across survey areas.

Soil Analysis Applications and Environmental Assessment

Portable XRF technology has become indispensable for soil geochemical surveys in mineral exploration programs. The ElvaX Geo enables geologists to rapidly screen soil samples for pathfinder elements that indicate potential mineralization beneath the surface. For copper-silver projects, this capability can increase sampling rates by 60% compared to traditional collect-and-ship methods, enabling teams to cover larger areas and increase discovery probability.

Environmental soil analysis benefits significantly from portable XRF technology's ability to determine elemental composition for contamination assessments and pollution monitoring. The analyzer identifies harmful elements in soils quickly, supporting environmental impact studies around mining sites and facilitating rehabilitation efforts. The non-destructive nature of XRF analysis preserves samples for additional testing if needed, while the minimal sample size requirement reduces field collection volumes by hundreds of kilograms per month.

Mining Exploration and Grade Control

The ElvaX Geo excels in multiple phases of mining operations, from greenfield exploration to production-stage grade control. During initial exploration, portable XRF locates geochemical anomalies in soils and outcrops that warrant further investigation. This rapid reconnaissance capability helps exploration teams prioritize drilling locations and optimize expensive drilling programs by focusing on the most promising targets.

In the drilling phase, real-time analysis of drill cores and cuttings enables immediate assessment of mineralization zones. Geologists can measure key elements including nickel, iron, copper, chromium, titanium, and cobalt, as well as calculate element ratios that indicate ore potential. This immediate feedback supports critical decisions about whether to continue or redirect drilling operations, potentially saving significant time and resources.

Technical Specifications and Operational Advantages

The ElvaX Geo operates with a 50 kV X-ray tube at 10W power, providing the energy necessary for accurate detection across a wide elemental range. The device measures 242 mm × 90 mm × 90 mm, offering portability without sacrificing analytical performance. The PDA controller operates within a protective enclosure that can be positioned underneath outer garments during extreme climatic conditions, ensuring functionality in harsh environments.

GPS integration via Bluetooth enables automatic geolocation tagging of measurement points, which streamlines data management and facilitates GIS mapping applications. This feature eliminates manual coordinate recording and reduces transcription errors while enabling sophisticated spatial analysis of geochemical data. The ElvaX software platform not only performs in-depth XRF spectrum analysis but also allows users to create custom calibrations tailored to specific geological matrices or project requirements.

Workflow Integration and Data Management

The ElvaX Geo transforms field operations by enabling faster communication of analytical results to management and stakeholders. Traditional workflows requiring sample shipment to distant laboratories create delays of days or weeks, during which field teams must either wait idly or continue sampling without results feedback. Portable XRF eliminates this bottleneck by providing actionable data within minutes of sample collection.

The analyzer synchronizes seamlessly with desktop computers via USB, Wi-Fi, or Bluetooth for efficient data transfer and archiving. This connectivity supports centralized data management systems where results from multiple field teams can be aggregated, visualized, and interpreted collaboratively. The device comes complete with a watertight carrying case, holster for convenient transport, composite pole for extended reach, and laboratory stand for controlled sample analysis.

Mineral Identification and Geochemical Mapping

Geologists utilize the ElvaX Geo to identify and classify minerals by analyzing their elemental composition in the field. This capability supports rapid geological mapping and helps determine rock unit boundaries without waiting for laboratory mineralogy. The ability to measure multiple elements simultaneously enables calculation of diagnostic element ratios that distinguish between barren and mineralized zones.

Creating geochemical maps during exploration campaigns provides visual representation of element distribution patterns across survey areas. These maps reveal spatial trends and anomalies that guide follow-up investigations and help geologists understand regional geological processes. The high sampling density achievable with portable XRF produces detailed geochemical datasets that would be prohibitively expensive using traditional laboratory analysis.

Conclusion

The ElvaX Geo portable XRF analyzer has fundamentally changed how geologists approach soil and geological analysis in the field. Its combination of technical sophistication, rugged durability, and user-friendly operation delivers laboratory-quality elemental analysis in remote locations under challenging conditions. The 800 mm² analytical spot, extended battery life, and hands-free operation capability specifically address the practical demands of geological fieldwork.

By accelerating sampling rates, eliminating laboratory turnaround delays, and enabling real-time decision-making, the ElvaX Geo increases exploration efficiency while reducing overall project costs. Whether conducting greenfield soil surveys, analyzing drill cores, or performing environmental assessments, this portable XRF technology provides the immediate geochemical intelligence that modern mining operations require. Investment in the ElvaX Geo represents a strategic advantage for organizations seeking to maximize discovery potential and optimize resource development programs.
